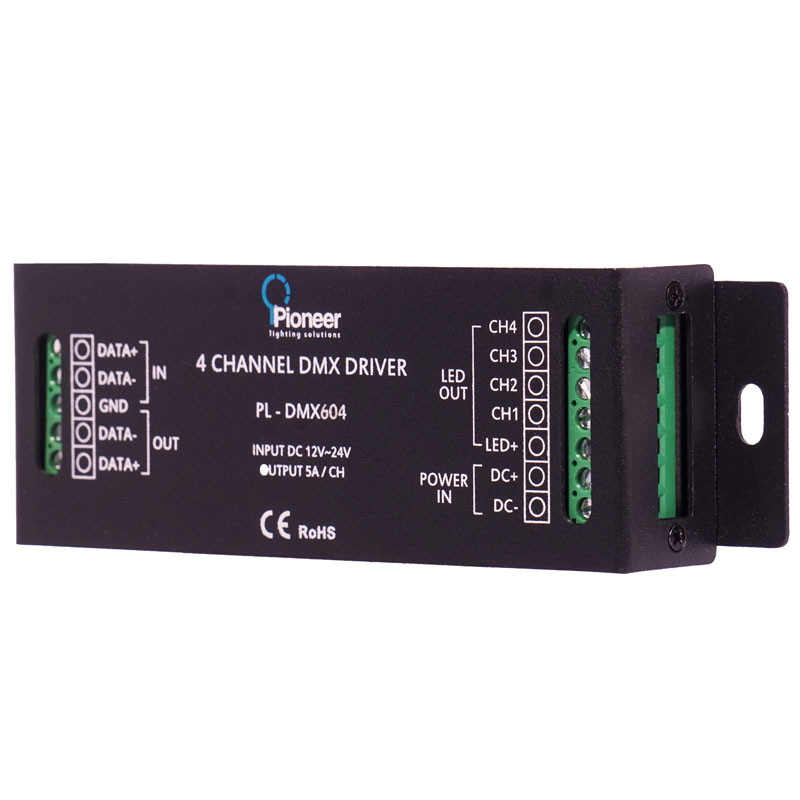

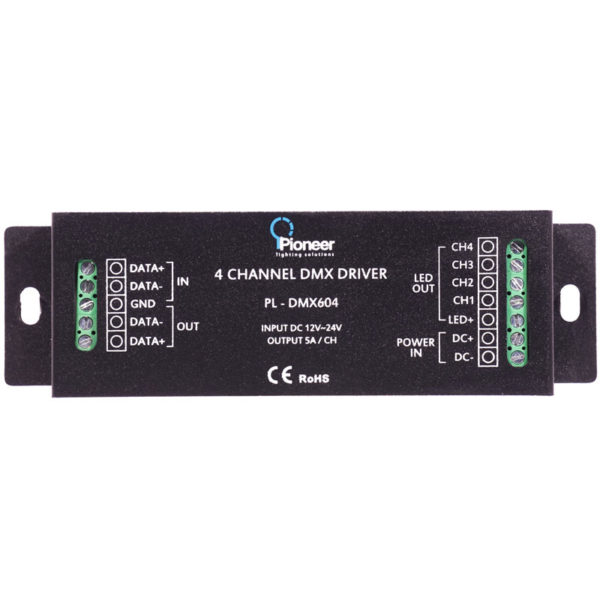

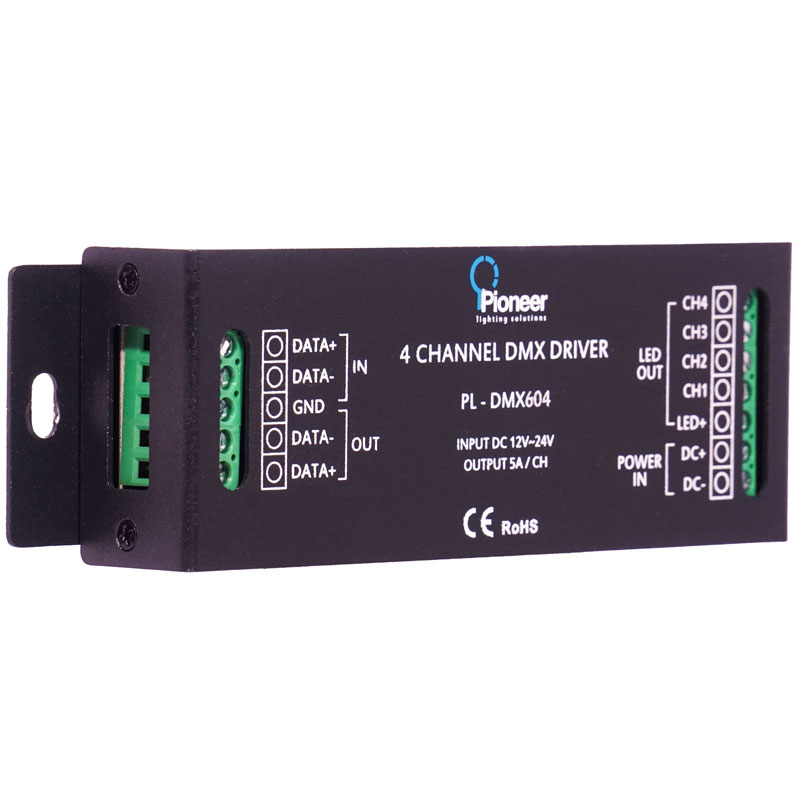

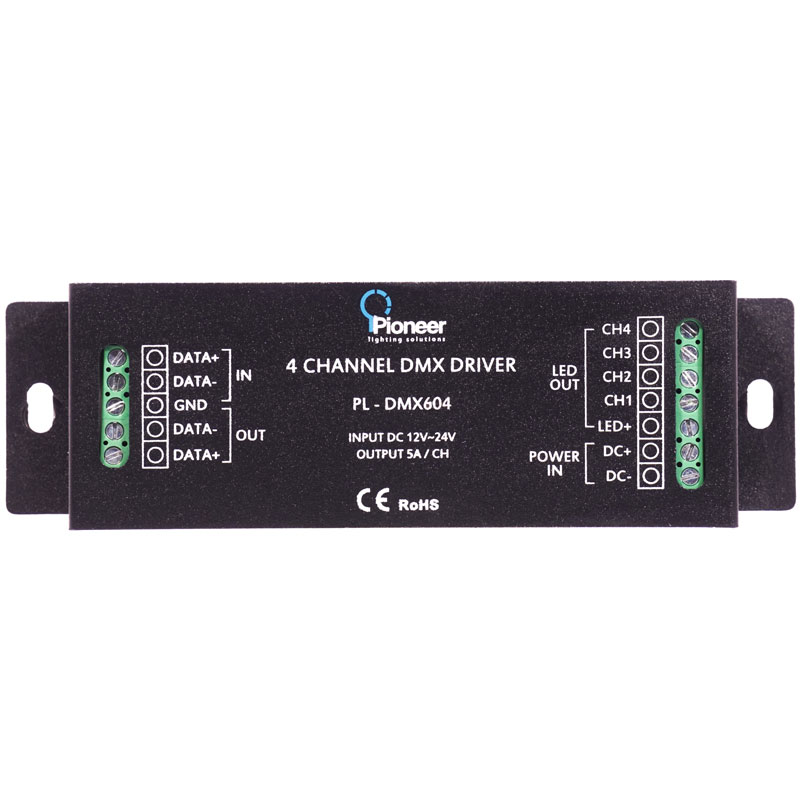

DMX DRIVER 4 CHANNEL
PL-DMX604 is a 4 channel DMX driver that operates on Input DC 12V~24V which Outputs 5A/CH. The provided connector block terminals offer easy installation for input/output cable management.
The addressing can be done by using the onboard Dip Switch configuration.
| Power Input | 12-2V DC |
| Color | Black |
| Control Protocol | DMX 512 |
| Data Input | DMX (3pin, 3.5mm pitch screw terminal) |
| Data output | DMX (3pin, 3.5mm pitch screw terminal) |
| Output current | 0.1 to 5A per channel |
| Addressing | Dip Switch |
| IP Rating | IP20, Interior Applications |
| Operating Temperature | -10 to 50° C |
| Storage Temperature | -20 to 70° C |
| Housing material | MS/Aluminum |
| Dimensions | 25x126x45 mm |
| Weight | 50g |
| Brand | Pioneer Lighting Solutions |
